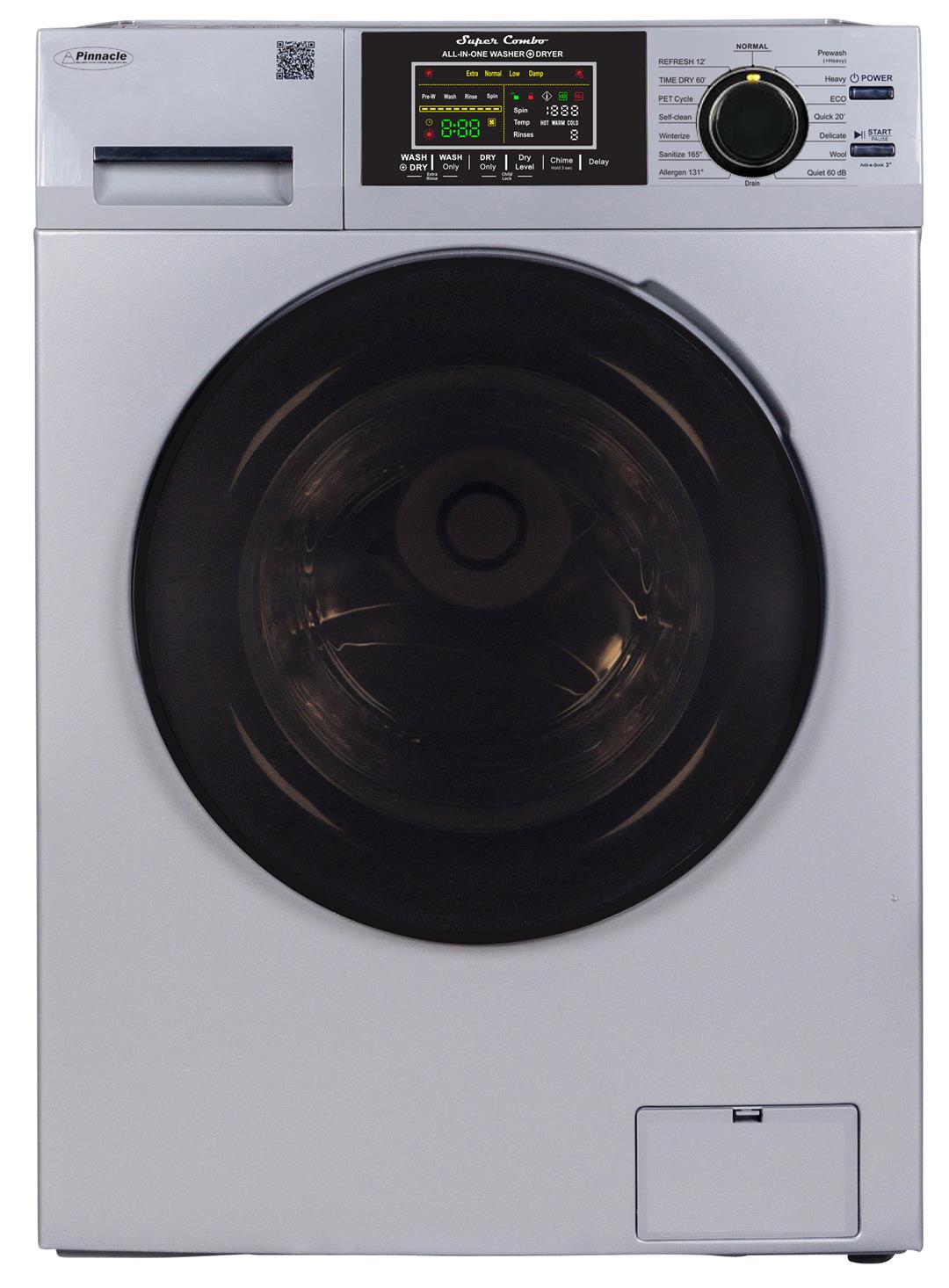

Pinnacle Washer Dryer Combo 23-4800 (Vented)

Pinnacle Appliances® Combo Washer Dryer EZ 4800 – White, Silver, or Black

The Pinnacle Appliances® EZ 4800 Combo Washer Dryer delivers energy-saving performance, innovative washing technology, and superior drying results—all in a compact, RV-ready design. Specifically engineered for mobile living, this model features a vented drying option, advanced diagnostics, and premium convenience features, setting a new benchmark for small-space laundry solutions.

With quick-access QR code support, user-friendly touch controls, and a 2-minute winterizing cycle, seasonal maintenance is a breeze. The color-coded LED display ensures clear visibility, while the anti-bacterial drum baffle provides a hygienic clean for every load. Dual fans deliver faster drying performance, and the 13-code diagnostic system makes troubleshooting simple and efficient.

Automatic water and dry level adjustments optimize efficiency, while specialized Allergen and Sanitize cycles help keep laundry fresh and safe. The EZ 4800 is also fully compliant with California’s Prop 65 standards for peace of mind.

Key Features

• Child Lock for safety

• Delay Start for flexible scheduling

• Oversuds Control for better wash results

• Add-a-Sock Option to pause and load forgotten items

• End-of-Cycle Chime for timely unloading

• Start/Pause Function for convenience

• Easy-Access Coin Trap for quick maintenance

• Adjustable Leveling Legs (x4) for stable installation

• Easy Setup – remove 2 shipping rods

• Electronic Control Panel with LED lights (color-coded)

• Energy Saving Mode – display auto-off after 5 minutes of inactivity

• Venting Booster Fan Option – blows air up to 50 ft

• 45° Angled Door Handle for reduced bending

• Quick QR Code Access for product info and support

• 2-Minute Winterize Cycle for seasonal storage

• Anti-Bacterial Drum Baffle for added hygiene

• Dual Fan Drying for faster results

• 13-Code Diagnostic System for simplified troubleshooting

• Automatic Water & Dry Level Adjustment for efficiency

• Allergen & Sanitize Cycles for cleaner laundry

Specifications

• Model: EZ 4800

• Brand: Pinnacle Appliances®

• Available Colors: White, Silver, Black

• Capacity: 1.62 cu. ft / 15 lbs

• Programs: 15

• Door Diameter / Swing: 18"

• Dry Ventilation: Venting

• Wash Only / Dry Only: Yes

• Pre-Wash Function: Yes

• Automatic Door Lock (Wash): Yes

• Water Intake: Circumference & Back

• Drum: Stainless Steel, Pearl Design

• Spin Speed: 1400 rpm

• Exhaust Fan: 0.5 A

• Fan Motor: 65 Watt

• Electrical: 110V / 60Hz / 12A

• Weight (Net/Gross): 161 / 163 lbs

• Dimensions (HxWxD): 33.5" x 23.6" x 21.8"

• Packaging Dimensions: 35" x 26" x 22.5"

• Certification: ETL

• Shipping Type: LTL

• Warranty: 5 Years (1 Year Parts & Labor)

Available in White, Silver, or Black, the Pinnacle Appliances® EZ 4800 offers the performance of a full-size laundry system in a compact footprint—perfect for RVs, apartments, and small homes.
