Splendide® has introduced a new generation of separate RV laundry appliances: the WFL2500X Front-Loading Washer and DV1725X 120V Dryer. If you're considering one of these machines—or already have one in your RV—one of the most important long-term questions is simple:
Will replacement parts be available when something eventually needs to be repaired?
At RVWashersDryers.com, we closely follow new Splendide® models because parts availability becomes increasingly important as these appliances make their way into RVs, motorhomes, fifth wheels, travel trailers, and marine applications.
Here's what we know so far about the new WFL2500X and DV1725X.

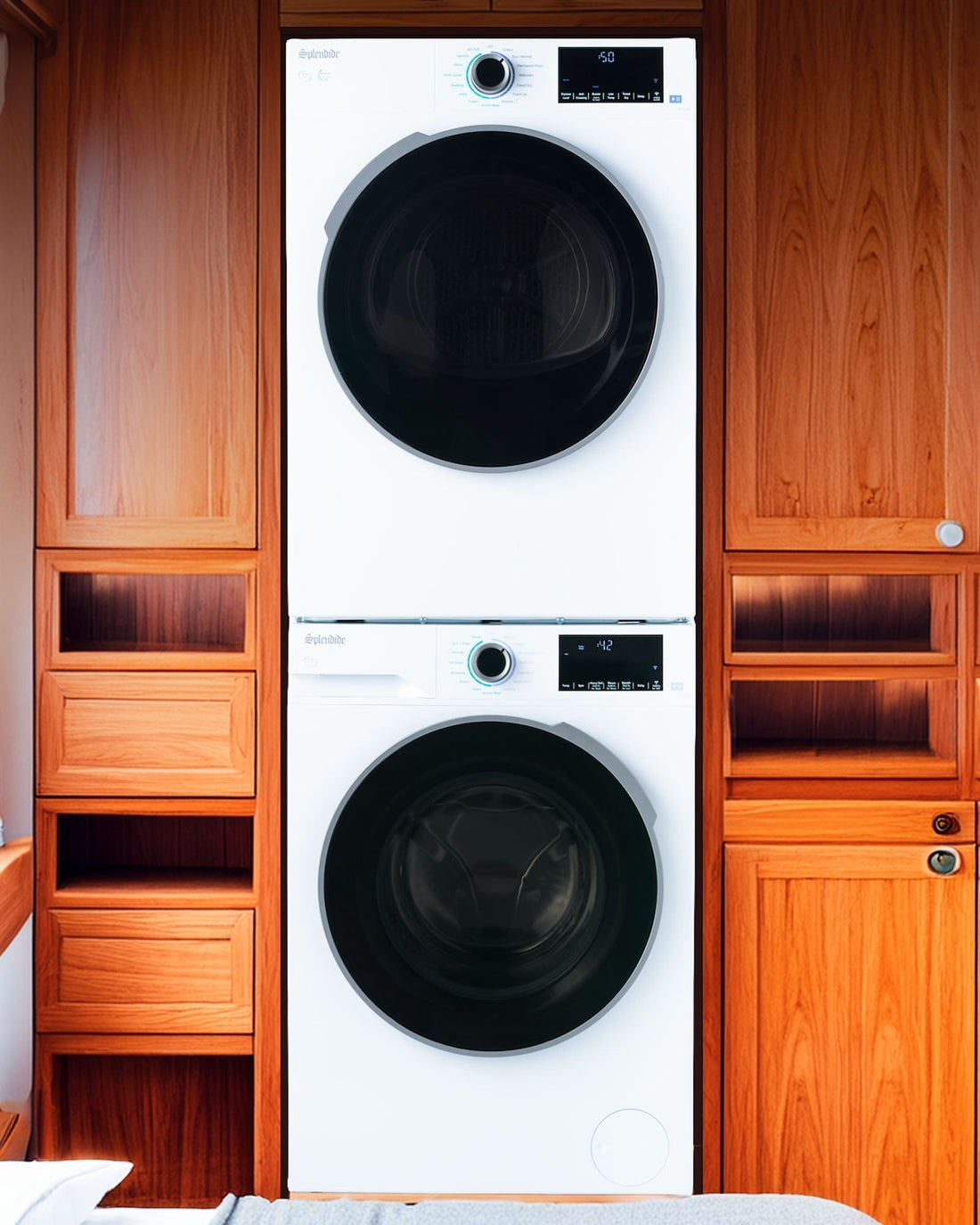

Meet the New Splendide® WFL2500X and DV1725X
The new Splendide® laundry pair consists of two separate 24-inch-class appliances:
Splendide® WFL2500X Front-Loading Washer
Splendide® DV1725X 120V Dryer
Splendide®'s data sheet specifically identifies these two new model numbers.
Both machines are designed around the space and electrical limitations commonly encountered in RV and marine installations.
The WFL2500X washer operates on 120V/60Hz at 6 amps, while the DV1725X dryer operates on 120V/60Hz at 12.5 amps. Splendide® recommends a separate 15-amp circuit.
What’s New With This Splendide® Generation?
The WFL2500X and DV1725X aren't simply replacements with new model numbers. Splendide® is introducing them as part of its New Stackable Collection, designed specifically for North American RV living.
According to Splendide®, highlights of the new generation include a larger-capacity washer and dryer, smart connectivity with remote monitoring, quieter operation, easier dryer-filter maintenance, and one-touch washer winterization.
The WFL2500X has a 2.3 cu. ft. capacity, 1,200 RPM maximum spin speed, 15 wash cycle settings, Wi-Fi connectivity and an automatic winterization cycle. The DV1725X is a 4.0 cu. ft. vented dryer with 15 dry cycle settings, Wi-Fi connectivity, an extra-large easy-clean filter and multiple sensor-dry options.
These changes also make model-specific parts identification particularly important. Owners shouldn't assume that a component used on an earlier Splendide® washer or dryer will fit the new WFL2500X or DV1725X.
How Big Are the New Splendide® Machines?
One of the interesting things about this new pair is its compact footprint.
According to the dimensional diagram on the Splendide® data sheet, the WFL2500X washer measures approximately:
33 1/8" high
23 1/2" wide
23 1/4" deep
The DV1725X dryer measures approximately:
33 5/8" high
23 1/2" wide
23 1/4" deep
These dimensions are shown directly in the installation diagram supplied by Splendide®.
The pair can also be stacked using the Splendide® SK04 RV/Marine Stack Kit, which is listed as an optional accessory.
Is a Parts List Available for the Splendide® WFL2500X and DV1725X?
This is where things get interesting for RV owners and service technicians.
At this time, we have not found a complete public illustrated parts breakdown for the WFL2500X washer or DV1725X dryer.
That means we don't yet have the kind of comprehensive exploded parts diagram that makes it possible to identify every internal component by position and OEM part number.
This isn't necessarily unusual for a newly introduced appliance. Technical parts documentation can become available separately from the initial product and installation literature.
The data sheet itself is primarily an installation and dimensional reference, rather than a service or parts manual. Splendide® also specifically warns that data sheets are subject to change and should not be used as the final installation criteria. Owners should consult the installation information supplied with the appliance.
What Parts Will Owners Eventually Need?
As these new machines accumulate operating hours, certain components will naturally become more important to RV owners and repair technicians.
For the WFL2500X washer, we're watching for availability of components such as pumps, door locks and latches, inlet valves, control boards, switches, sensors, hoses, seals, belts, motors and other service parts.
For the DV1725X dryer, important repair categories are likely to include heating components, thermostats and temperature sensors, belts, rollers or drum-support components, motors, switches, control electronics, door components and vent-related parts.
Important: These are general repair categories, not a confirmed WFL2500X or DV1725X parts list. Until official parts documentation is available, part numbers and compatibility should be verified specifically for the model and serial number of the appliance.
Some Accessories Are Already Identified
Although a complete internal repair-parts breakdown isn't included in the current data sheet, Splendide® does identify several accessories for the new machines.
The listed optional accessories include:
PI22 Drain-A-Way Pan
VID403A/AB/AC Vent Kit
MK01 SecureFit Brackets
SK04 RV/Marine Stack Kit
VI490D 90° Dryer Vent Elbow
These accessory numbers are provided directly on the Splendide® WFL2500X/DV1725X data sheet.
The washer also comes with two water inlet hoses, an electrical connection, a five-foot flexible drain hose and a drain-hose U-clamp.
The WFL2500X Includes a Dedicated Winterize Cycle
One feature that should be especially useful for RV owners is the WFL2500X's dedicated Winterize cycle. Rather than treating winterization as an afterthought, Splendide® has incorporated a specific cycle to help protect the washer when an RV is being prepared for cold-weather storage.
According to Splendide®'s WFL2500X Quick Guide, the Winterize cycle is designed to work while antifreeze is being pumped through the RV's fresh-water system. During the process, the washer fills three times, routing antifreeze through the detergent and bleach compartments before winter storage.
The WFL2500X also provides a de-winterization procedure for flushing the antifreeze from the washer when it's time to put the RV back into service.
This RV-specific functionality is another reason it's important to identify replacement parts specifically for the WFL2500X rather than assuming that parts from an earlier Splendide® washer are interchangeable.
The DV1725X Is a Vented Dryer
Another important detail for owners ordering parts or planning an installation is that the DV1725X requires dryer exhaust ducting.
Splendide® specifies rigid or flexible metallic ducting and states that the ducting must slope downward and away from the machine. The data sheet also warns against exhausting the dryer into a chimney, furnace, cold-air duct, attic, crawl space or another duct used for venting.
The dimensional diagram shows a 4-inch vent adapter on the rear of the DV1725X.
That distinction will matter when identifying future DV1725X-specific parts and accessories.
Be Careful When Ordering Parts for These New Models
The model number is going to be especially important during the transition to this new generation.
A part that looks similar to one used in an older Splendide® washer or dryer should not automatically be assumed to fit the WFL2500X or DV1725X.
When looking for a replacement part, verify:
Model number → Part number → Serial/application information → Compatibility
This can prevent an expensive mistake, particularly with electronic controls, motors, heating components, pumps, door assemblies and other model-specific parts.
RVWashersDryers.com Will Be Adding WFL2500X and DV1725X Parts
As genuine replacement parts and reliable compatibility information become available for the Splendide® WFL2500X washer and Splendide® DV1725X dryer, we'll continue adding them to RVWashersDryers.com.
Our goal is to make it easier to identify the correct part for your specific Splendide® appliance rather than guessing based on appearance or an older model.
If you're looking for a WFL2500X or DV1725X part that isn't listed yet, contact us with your complete model number and the part you're trying to replace. We may be able to help identify the correct replacement or determine whether the part has become available.
We'll Continue Watching for the Official Parts Breakdowns
The WFL2500X and DV1725X represent a new generation of Splendide® separate washer and dryer appliances, and we're particularly interested in seeing the official service and parts documentation as these models become more widely used.
Once complete illustrated parts breakdowns and OEM part numbers become available, they'll make it much easier for RV owners and technicians to identify everything from routine replacement components to major repair parts.
Bookmark RVWashersDryers.com and check back as we expand our Splendide® WFL2500X and DV1725X replacement-parts coverage.
