Splendide® WDC7200XCD: The Ultimate Ventless Washer-Dryer Combo for Small Spaces
The Splendide® WDC7200XCD is a compact, ventless washer-dryer combo designed for spaces where traditional vented systems won’t work. Whether you're in an RV, a boat, or a small apartment, this unit offers a high-efficiency solution for laundry in tight spaces. Here’s everything you need to know, based on the official Owner’s Manual and Data Sheet.
🛠️ Overview of the WDC7200XCD

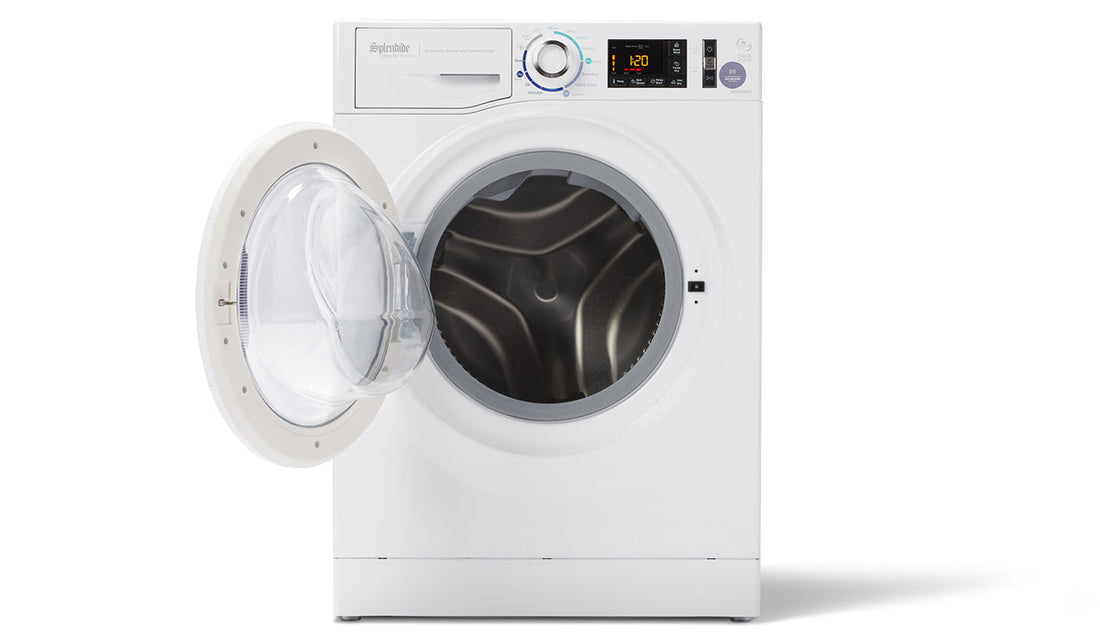

The WDC7200XCD is a 24-inch wide ventless washer-dryer combo. It’s engineered to wash and dry laundry in one convenient machine, making it a perfect fit for small living areas where space is at a premium.
Key Features:
- Washer Capacity: 15 lbs
- Dryer Capacity: 11 lbs
- Spin Speed: 1200 RPM
- Dimensions: 23.5” W x 22.75” D x 33.25” H
- Weight: 143 lbs
- Power Requirements: 120V, 60Hz, 15 Amps
- Water Pressure Requirements: 7.5 – 100 PSI
- Water Usage: 7–16 gallons per wash cycle
💡 Note: The WDC7200XCD operates without the need for an external vent, making it ideal for enclosed spaces. It uses a condensation drying system, where moisture is removed from the clothes and condensed back into water, which is then drained.
💨 How the Ventless Drying Works
Unlike the WDV2200XCD, which uses a vented drying system, the WDC7200XCD uses condensation drying. In this system, water vapor from the clothes is condensed into water and pumped out of the machine via the drain hose.
Advantages of Ventless Drying:
- No vent required: You can install this unit anywhere, even in areas without venting access.
- Energy-efficient: The condensation method uses less energy compared to traditional vented dryers.
- Compact: Since no venting is required, the unit can be installed more flexibly.
🧺 Control Panel & Cycles
The WDC7200XCD offers a variety of cycles tailored to different laundry needs:
- Cotton Heavy: For thicker items like towels and bedding. Uses high spin speed and longer drying time.
- Cotton Regular: Ideal for standard clothes, providing a balanced wash and moderate drying time.
- Permanent Press: A cycle designed to minimize wrinkles for items like shirts and pants.
- Delicates/Wool: A gentle cycle for delicate fabrics, using lower spin speeds to avoid damage.
- Time Dry: A customizable dry time for smaller loads or items needing quick drying.
🧺 Pro Tip: Since the WDC7200XCD is ventless, drying takes longer than traditional vented systems. For quicker drying times, run smaller loads and choose the Time Dry cycle for greater flexibility.
🧴 Using Detergents and Additives
- Detergent: Always use High-Efficiency (HE) detergent, which is specially formulated for low-water, high-efficiency systems.
- Amount: Follow the guidelines for load size. Too much detergent can result in excess suds that are difficult to rinse out.
- Fabric Softener: Add fabric softener to the appropriate compartment in the detergent drawer to ensure even distribution during the rinse cycle.
- Bleach: Only use bleach when necessary and only during the whites cycle. Make sure to dilute it with water before adding it to the bleach compartment.
💡 Tip: Consider using vinegar as a natural fabric softener—it's a great alternative for sensitive skin.
🧽 Maintenance and Care
Like the WDV2200XCD, the WDC7200XCD requires regular maintenance to keep it running smoothly:
- Drum Cleaning: To clean the stainless steel drum, run a self-cleaning cycle without any laundry inside, using a small amount of detergent. Do this periodically to avoid buildup.
- Lint Filter: The WDC7200XCD uses a self-cleaning lint removal system, but it’s still important to check it occasionally to ensure it’s working properly.
- Water Inlet Screens: Periodically check the water inlet screens for debris and clean them if necessary to ensure smooth water flow during washing.
🏁 Installation and Setup
- Power: The unit requires a 120V electrical outlet and 15 amps of power, suitable for most RVs and homes.
- Water Supply: Connect the unit to cold and hot water lines with a standard hose. The machine also uses a Y-connector if you have only one faucet available.
- Drainage: Since the WDC7200XCD is ventless, ensure that it’s connected to an appropriate drain line to dispose of the water condensation.
💡 Note: The unit is designed to be installed in a compact space, such as under a counter, with ventless drying as its major benefit.
❄️ Winterization Guide
Winterizing your Splendide® WDC7200XCD is critical for protecting the internal components from freezing in cold conditions. Follow these steps to ensure proper winterization:
- Turn off the water supply and unplug the unit from the electrical source.
- Run a short spin cycle to drain any water remaining in the drum and pump.
- Add antifreeze (non-toxic, RV/Marine grade) to the drum, around ½ quart, to prevent any residual water in the system from freezing.
- Remove the water supply hoses and allow any remaining water to drain out.
- Inspect the drain filter and remove any residual water.
- Store the unit in a dry, heated area to prevent freezing if possible, or cover it with a waterproof tarp for outdoor storage.
🧊 Tip: Always ensure there is no water left inside the machine or its hoses to prevent freezing damage during storage.
🏁 Conclusion: Is the WDC7200XCD Right for You?
The Splendide® WDC7200XCD Ventless Washer-Dryer Combo is perfect for those who need a space-saving, energy-efficient laundry solution without the need for venting. Whether you’re living in an RV, boat, or small apartment, this ventless design makes it easy to install and use in even the most compact spaces.
By following the tips and winterization steps outlined here, you’ll ensure that your WDC7200XCD continues to work reliably year after year.
If you need replacement parts for your Splendide® WDC7200XCD, we've got you covered. For parts like filters, hoses, gaskets, and more, you can visit RVWashersDryers.com for Replacement Parts
Parts for the WDC7200XCD
If you need replacement parts for your Splendide® WDC7200XCD, we've got you covered. For parts like filters, hoses, gaskets, and more, you can visit RVWashersDryers.com for Replacement Parts
Conclusion
The Splendide® WFL1300XD washer is the perfect solution for those with limited space but high laundry demands. With its compact design, energy-efficient operation, and multiple wash cycles, it’s ideal for RV owners, boaters, and anyone who needs an efficient, high-quality washer in a smaller living space.
Ready to make your purchase? Click here to buy the WDC7200XCD now and get started with cleaner, more efficient laundry today!
