Splendide® Washer-Dryer: Key Features and Functions

Splendide® Washer-Dryer: Key Features and Functions

Splendide® Washer-Dryer: Key Features & Functions

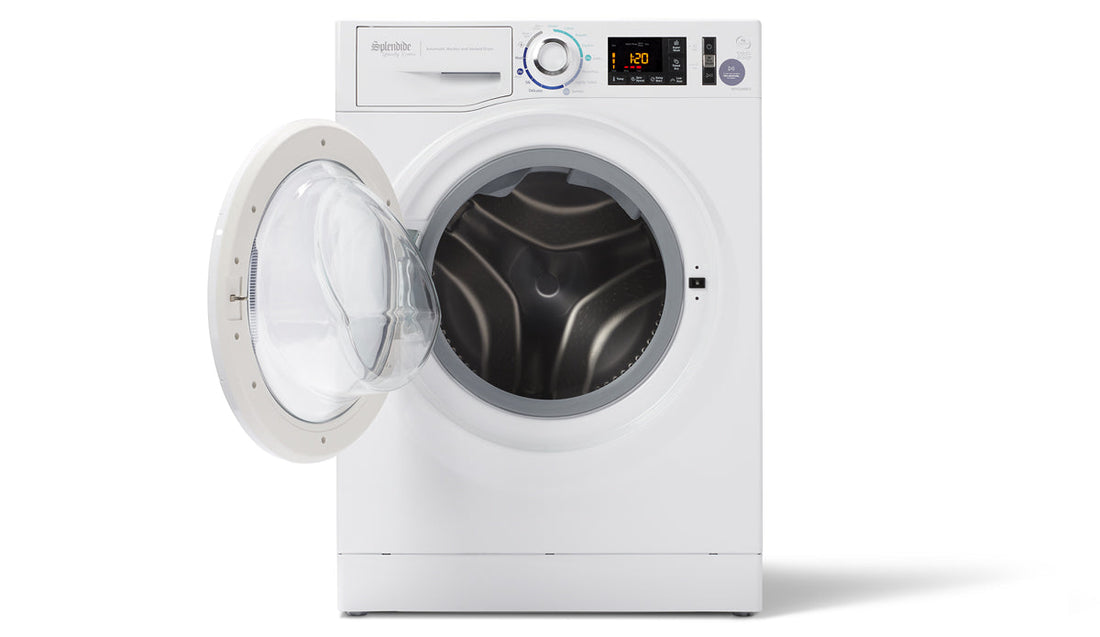

The Splendide® Washer-Dryer is a powerful, automatic front-loading appliance with a variety of features that ensure optimal performance and ease of use. Here’s an overview of what it offers:

Key Features:

  1. 10 Wash Programs: Choose from a range of wash cycles tailored to various fabric types and soiling levels.

  2. 7 Water Temperature Settings: Customize water temperature for your laundry needs.

  3. 3 Drying Programs: Select the ideal drying cycle for your garments.

  4. 1200 RPM Max Spin Speed: High spin speed helps reduce drying time.

  5. Auto Water/Energy Control: The machine automatically adjusts water and energy use for maximum efficiency.

  6. Safety Door Lock: Prevents accidental opening during wash and dry cycles.

  7. Express Wash: Reduces wash time for lightly soiled fabrics like cotton and permanent press.

  8. Multiple Rinses: Provides up to 4 rinse cycles to ensure fabrics are thoroughly rinsed, especially useful for people with detergent allergies.

  9. Foam Removal System: Automatically adjusts foam levels for effective rinsing.

  10. Recirculating Wash: Ensures detergent is evenly distributed throughout the load to optimize cleaning.

  11. Automatic Balance System: Adjusts motor speed or stops the cycle if the load is unbalanced.

  12. Impulse Spin Technology: Reduces wrinkles, minimizes fabric wear, and improves energy efficiency.

  13. Cool Down Feature: The dryer cools down clothes at the end of the drying cycle, reducing wrinkles and making garments safer to handle.

Energy Efficiency:

  • ENERGY STAR Certified: Uses less water and energy, making it up to 40% more efficient than non-Energy Star models.

Control Panel Overview

The Splendide® Washer-Dryer is designed with a user-friendly control panel to simplify the washing and drying process. Below are the main functions of the control panel:

Buttons & Knobs:

  • ON/OFF Button: Powers the washer on/off and unlocks the door.

  • DOOR LOCK LED: Indicates when the door is locked or unlocked. Flashing means the door can be safely opened.

  • START (Cancel) Button: Press once to start the cycle, or press and hold to cancel a cycle.

  • DRY TIME Selector: Allows you to select the drying time in minutes. For larger loads, the MAX LOAD option runs for 180 minutes.

  • CYCLE Selector: Lets you choose between wash and dry cycles.

  • WASH TEMP Selector: Adjusts the water temperature for the wash cycle (rinse water is always cold).

Option Buttons:

  • EXTRA RINSE: Adds an additional rinse cycle (not available in the Delicates cycle).

  • LOW SPIN: Reduces spin speed to 600 RPM (not available in Delicates or during drying).

  • LOW HEAT: Lowers drying temperature for heat-sensitive fabrics.

  • PRE-WASH: Adds an extra wash at the beginning of the cycle to remove tough stains.

Important Information for Usage:

  • Laundry Aid Amounts:

    • Prewash Detergent: 1 to 2 tbsp powder (or 1 tbsp liquid).

    • Detergent: 1 to 2 tbsp powder (or 1 tbsp liquid).

    • Fabric Softener: 1 to 2 tbsp liquid.

    • Bleach: Dilute bleach before use and do not exceed the max fill line in the dispenser.

  • Dispenser Drawer: The drawer automatically dispenses the appropriate laundry aids during the cycle:

    • 1: Prewash detergent (use with the bleach bin removed).

    • 2: Main detergent (powder or liquid).

    • 3: Fabric softener (liquid).

    • 4: Bleach (use only with the bleach bin in place).

Maintenance Tips for Longevity

  1. Avoid Overloading: Ensure that you load the washer-dryer according to the recommended capacity. Overloading can cause imbalance and strain on the machine.

  2. Clean the Dispenser Drawer Regularly: Residual detergent can build up over time, so it’s important to clean the drawer periodically.

  3. Check for Lint Buildup: Even though the washer-dryer has a self-cleaning pump, regularly check the lint filter and exhaust vent for buildup to maintain efficiency.

  4. Run a Cleaning Cycle: Occasionally run the washer on an empty cycle with a washer cleaner to remove detergent buildup and odors.

Safety Precautions:

  • Electrical Safety: Always ensure the washer is plugged into a grounded 3-prong outlet. Never remove the cover or attempt to repair the unit yourself.

  • Door Lock: The safety door lock prevents accidental opening of the door while the machine is running. It’s important to wait until the door lock LED flashes before attempting to open the door.

Conclusion:

The Splendide® Washer-Dryer offers top-of-the-line performance, versatility, and energy efficiency. With a variety of wash and dry cycles, automatic settings, and innovative technology, it delivers superior cleaning and drying results. For more information on the Splendide® Washer-Dryer and to purchase it, visit RVWashersDryers.com.
